Flashing takeoffs · on the roof

Draw the flashing. Read the girth. Send one clean list.

Girth to the millimetre and a fold count that knows your hems and kick-outs, worked out on your phone before you order a sheet.

Start 14 days free See how it works

Built by Tiaki, a longrun roofer in Nelson

Girthto the mm, as you draw

Foldscounted the way the shop bends

1 listPDF or straight to the fab shop

On site, to the brake

A flashing takeoff that fits in your pocket

Straight off my phone. No girthing off a scrap of timber, no scribbled profiles going down to the fab shop.

FlashPro grid draw on a phone: tap the corners and they snap to the grid — 1Draw any profile
Tap the corners and they snap to the grid, or draw freehand and it straightens itself. Barge, apron, ridge, box gutter: if the brake can fold it, you can draw it.

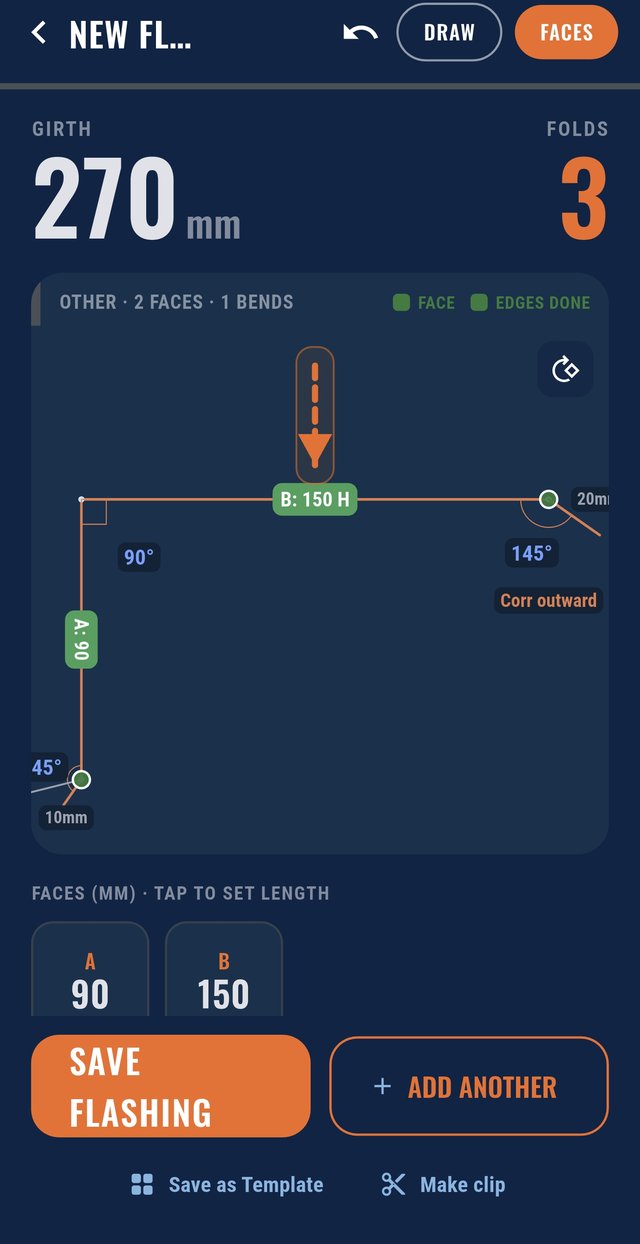

2Read the girth and folds

Set your face lengths and the girth and fold count move with every one. Type any bend angle, decimals and all.

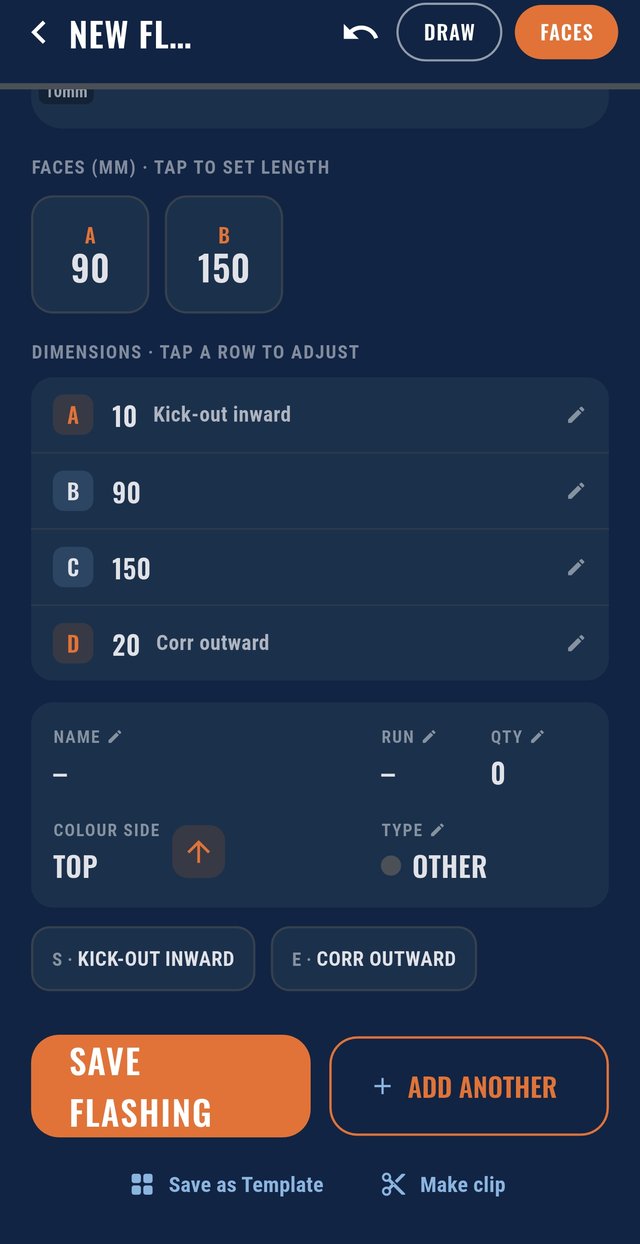

FlashPro dimensions list with a kick-out inward and corrugated outward edge, colour side, and Save as Template and Make clip buttons — 3Pick the finishes, save it
Kick-outs, hems, corro edges and the colour side on every flashing. Save it as a template for next time, then send one clean list.

Mud maps and job photos

Set-out your crew can actually work off

Put the job photo, the roof plan or a shot of each side of the building into the job, then pin every flashing where it goes. No more guessing which barge goes on which end.

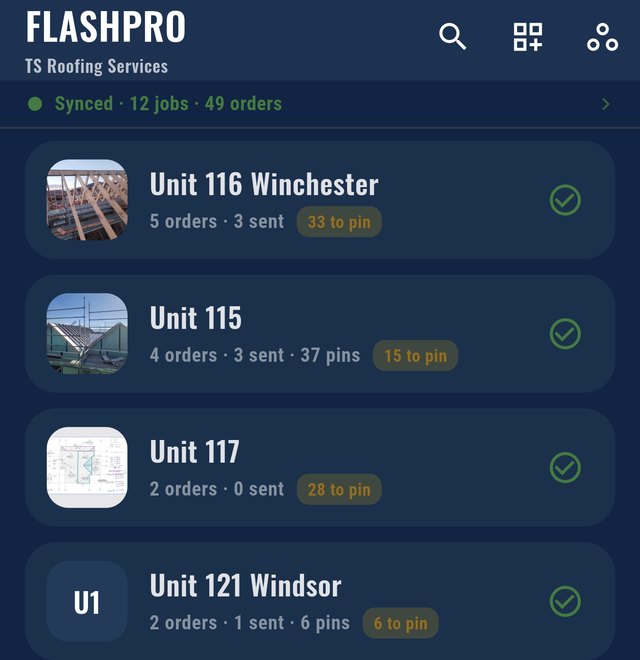

The FlashPro job list on a phone: each job with its site photo, orders sent, pins placed and pieces still to pin — 1Every job has its photo
Snap the site and it's on the job. The list shows how many orders are sent and how many pieces are still to pin.

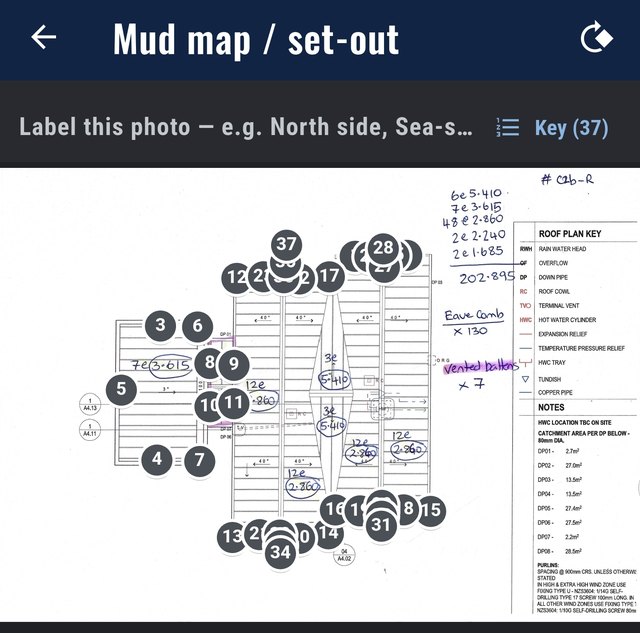

A FlashPro mud map: a roof plan with 37 numbered pins marking where each flashing goes — 2Pin it on the plan
Drop numbered pins on a site photo or the roof plan, pulled straight out of the plan PDF on the Android app. Two fingers to zoom in on a busy roof.

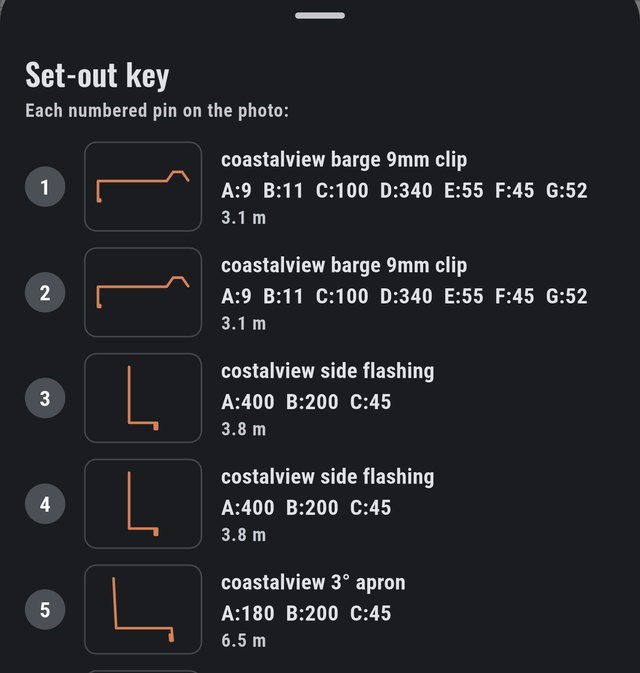

3A set-out key to work off

Every pin listed against its profile, name, dimensions and length. Add the set-out pages to the PDF when you want them.

The output

One list the fab shop can actually read

Every flashing on the order with its profile, girth, folds, quantity and length. Once an order's sent it locks, and Revise gives you rev 2, so the shop always knows which list is current.

Edge finish	Folds
Safety hem	1
Open hem	1
Kick-out	1
Bird's beak	2
Soft edge / raw edge	0

A fold count off by two throws out every estimate. FlashPro knows an edge finish isn't always one fold.

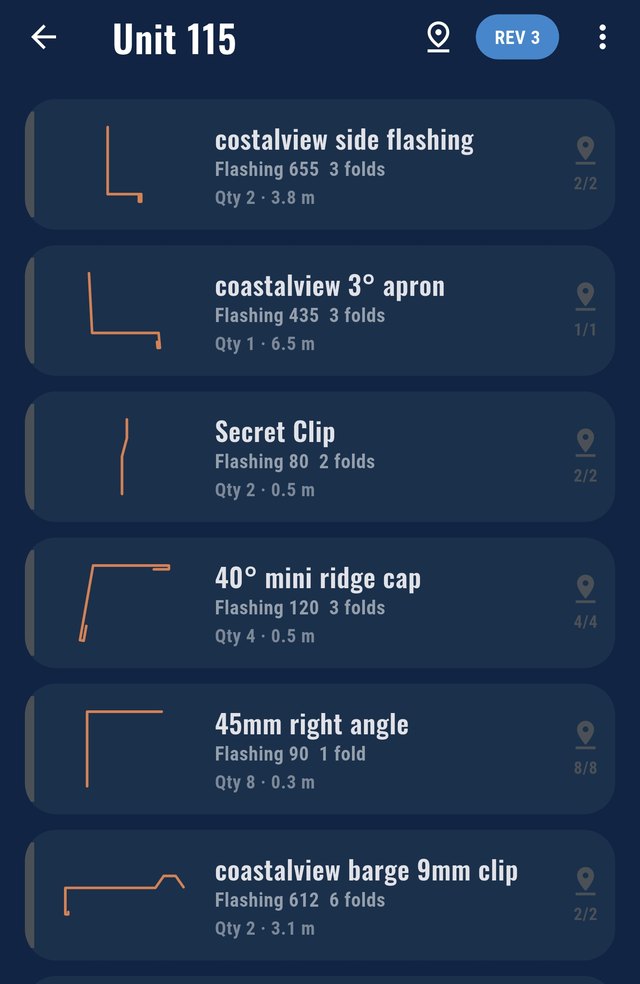

Unit 115 on rev 3, straight off my phone.

The PDF

A PDF the fab shop can work off

Job, date needed, material and colour up top, then a card for every flashing with the profile drawn out, the face lengths, quantity and length. Turn the angles off for a clean diagram, or add the set-out pages for your own crew. It opens in your phone's PDF reader, ready to email or print.

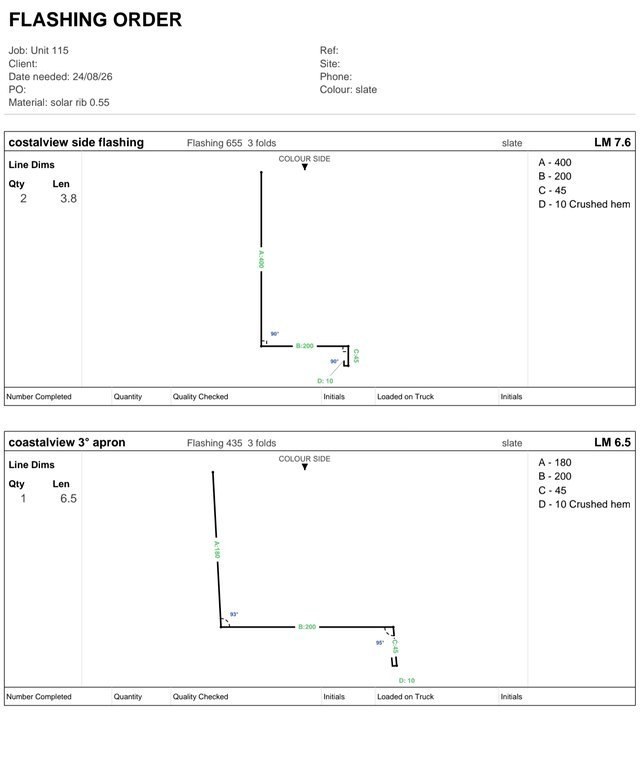

Page one of a real FlashPro flashing order PDF: job details and two flashings drawn out with dimensions, quantity and length — The order: every flashing drawn out

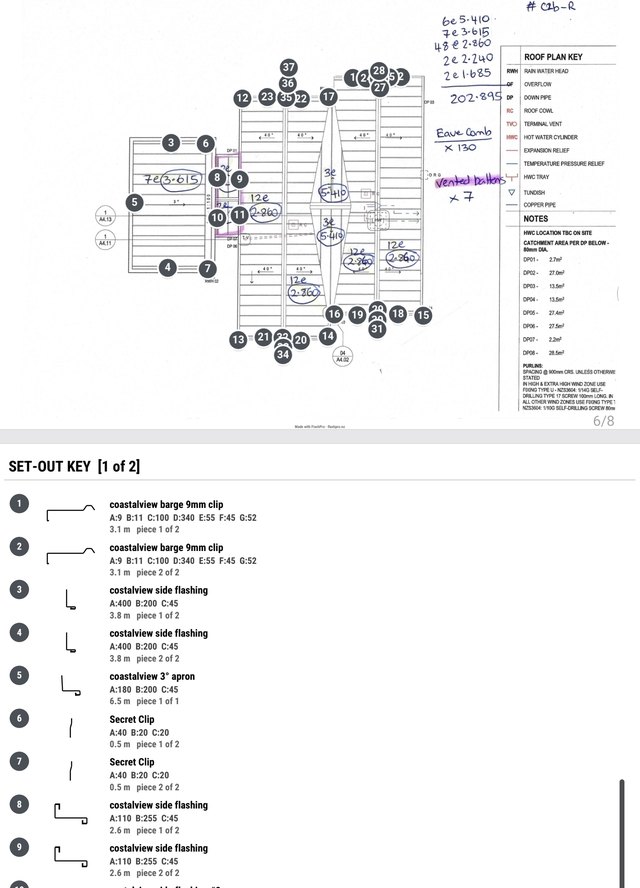

The set-out pages of a FlashPro PDF: the roof plan with numbered pins and the set-out key listing each pin — Set-out pages: the plan and the key

And it also does

And the rest of the kit

Revisions

Sent orders lock. Hit Revise and you get rev 2, then rev 3, so the factory always has the current list.

Send to the factory

Set your usual factory once and every order sends to them by default.

Templates

Save a profile once and drop it into any order after. Sort them into your own groups.

No coverage? No worries

Draw and girth with nothing on the bars. Changes go through when you're back in range.

Phone, tablet, office

Android app or any browser, one account across all of them.

Your crew

On Team or Crew, invite the crew by email. Everyone works off the same jobs. Your data stays in your own private database.

"I built FlashPro to give the fab shop one clean, clear flashing list, easy to read at a glance, instead of a scribble on a bit of timber."

Tiaki · longrun roofer, Nelson

Pricing

One price for the whole business

Every plan is the full FlashPro. NZ dollars, GST included. 14 days free, cancel any time.

Solo

$39 /month

NZD, GST included

1 user

Everything in FlashPro
Phone, tablet and web
PDF flashing schedules
Your own private database
No extra users

Two minutes to sign up

Your business gets its own private FlashPro workspace. Nothing is shared with any other business.

1Fill this in and pick a plan.
2Put your card in on Stripe. Nothing is charged for 14 days.
3We set up your workspace and email you to set your password.

Start free trial

14 days free · cancel any time
